1956 Cat 12 Grader Head specs

Showing 1 to 2 of 2 results

venco2003

Topic Author

Offline

Send a private message to venco2003

Posts: 3

Thank you received: 0

I have a head for the 318D Cat 12 grader in at the machine shop. They needed to take about .004 off in surfacing but don't know the specs for the nozzle and valve protrusion. Does anyone out there know what they are? Our local dealer doesn't seem to be able to help with that, or doesn't want to take the time to research it. The head casting number is 7F7878. It has the glow plugs in the pre-combustion chambers. Thanks!

Please log in or create an account to join the conversation.

Sat, Mar 22, 2014 12:10 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,792

Thank you received: 50

Valve protrusion measured from surface of the head to top of valve is 0.0937" for both intake and exhaust.

Please log in or create an account to join the conversation.

Sat, Mar 22, 2014 1:36 AM

neil

Offline

Member

Moderator

Admin

Super Admin

Send a private message to neil

Posts: 7,281

Thank you received: 63

Reply to Old Magnet:

Valve protrusion measured from surface of the head to top of valve is 0.0937" for both intake and exhaust.

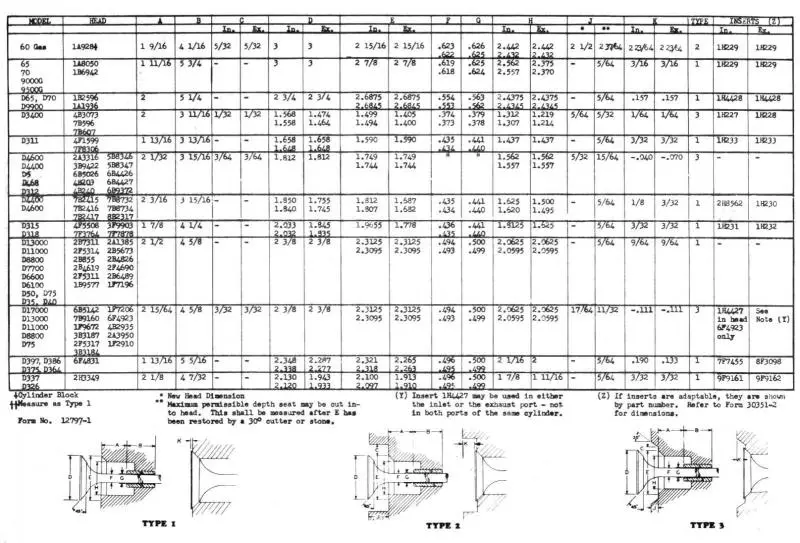

Here's your chart. Look up D318 on the left side and then column K is the dimension

[attachment=22295]Valve and seat dimensions.jpg[/attachment]
