1955 D8 Decal Placement

Michael Crowe

Topic Author

Offline

Send a private message to Michael Crowe

Posts: 150

Thank you received: 0

I purchased a set of decals from the online store but there were no instructions as to the exact location. I used the serial number to order the correct set, but I was surprised to see that the decals that are still faintly visible on my machine are newer than the originals. Is there an official location guide or something to tell a guy where to put them. Even though it is going to be a farm work CAT cleaning up some light brush, I'd like it to look nice and have the correct decals be in the right spot. I've sent an email to the club and perhaps they have something that they can send.
I'm headed down in a week or so when the building is done to finish getting it serviced and I'd like to put the decals on then.

Thanks, you guys have been very helpful thus far and I appreciate it. Michael

Please log in or create an account to join the conversation.

Sun, Jul 24, 2022 10:15 PM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

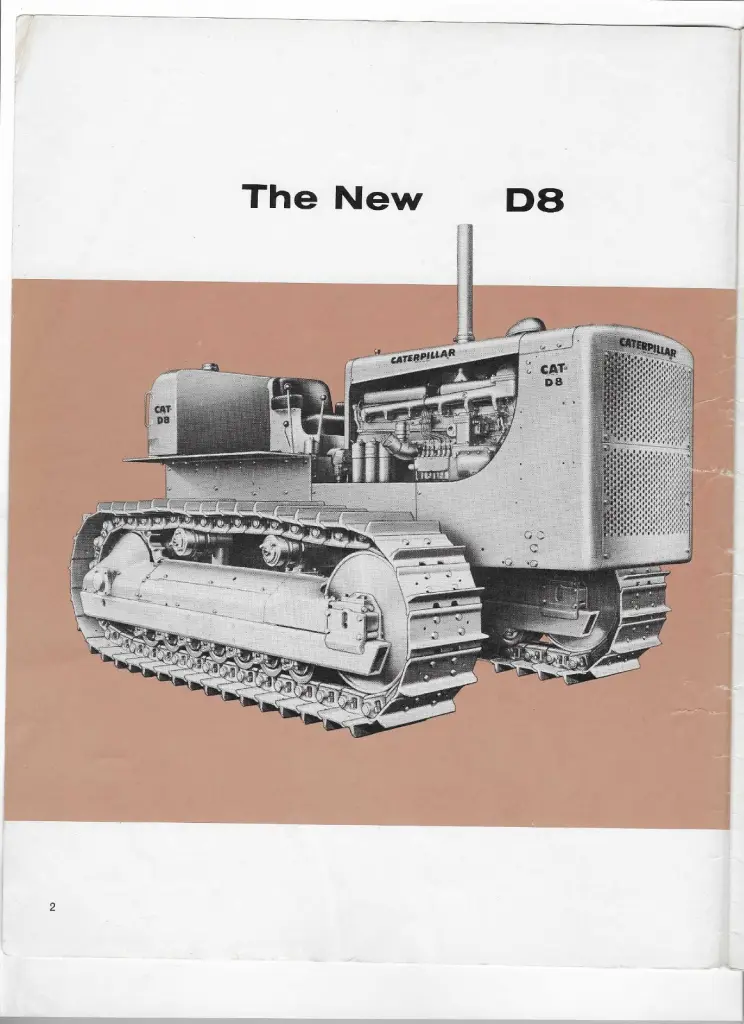

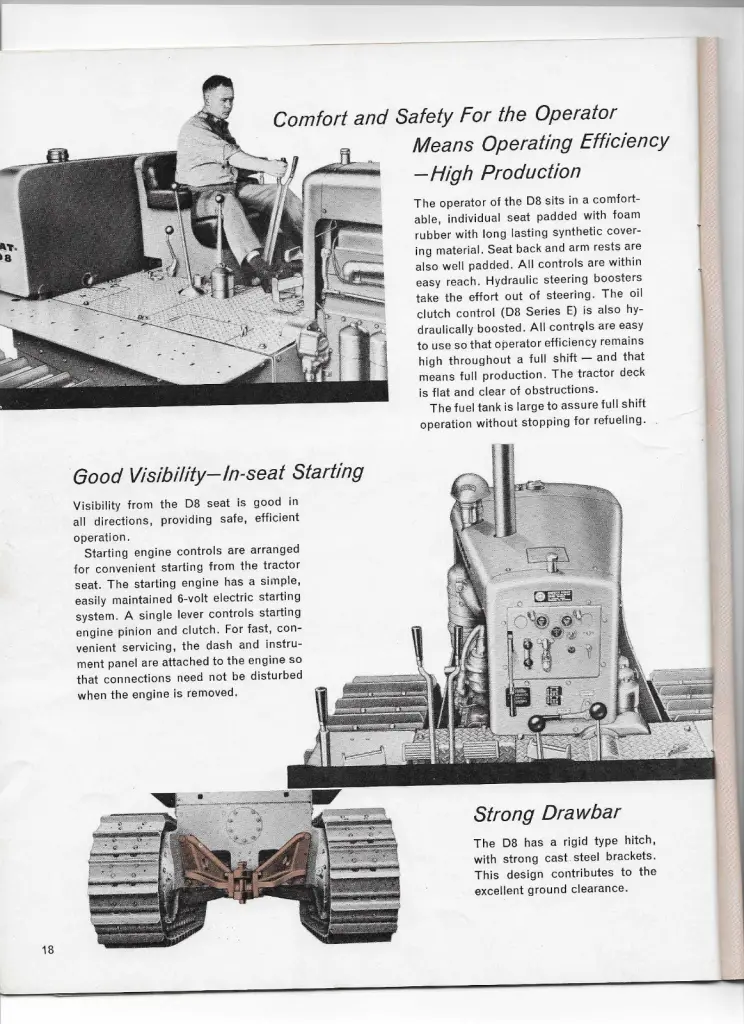

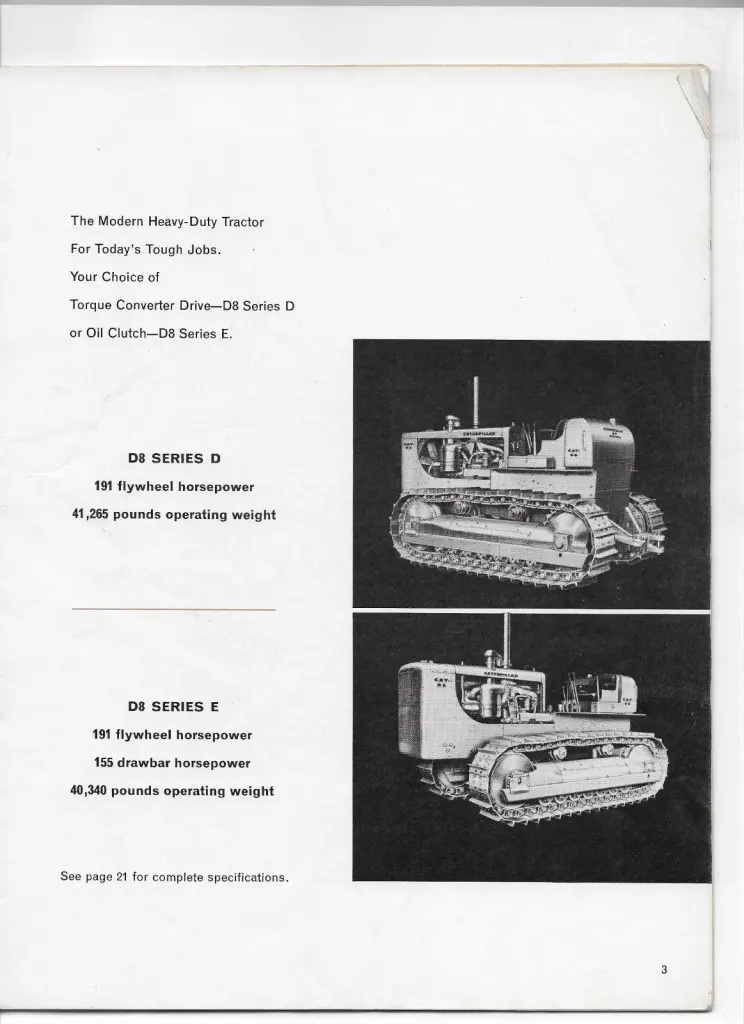

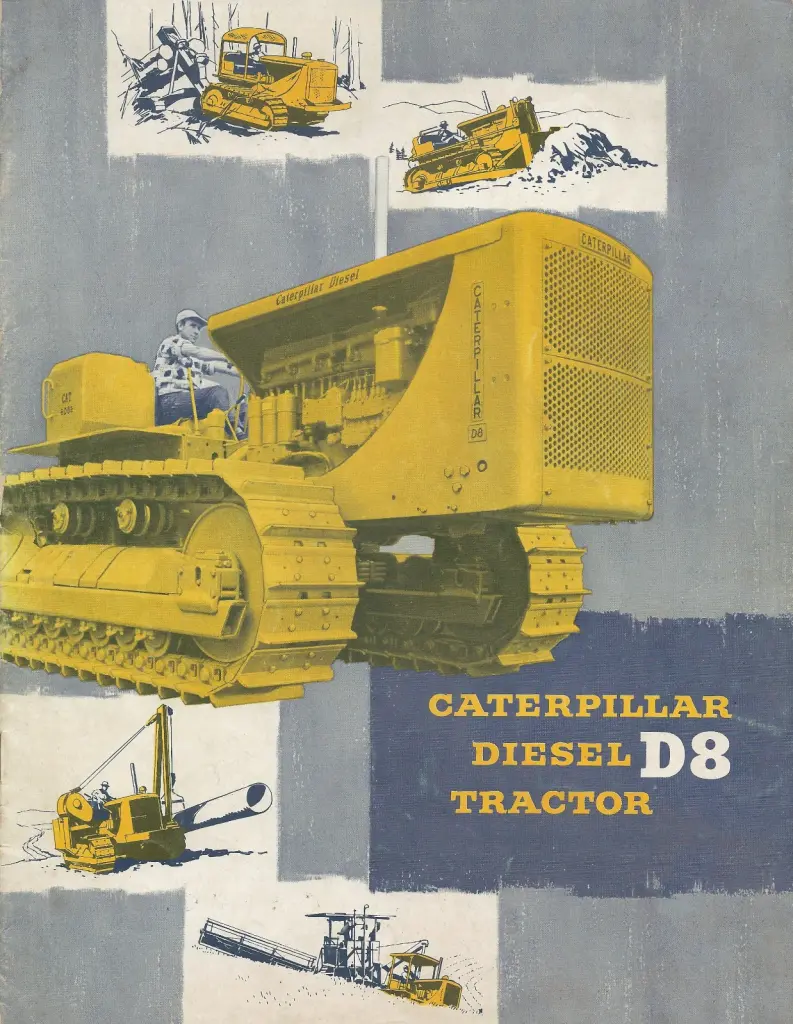

These are from a 1955 Brochure,
Attachment

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 12:45 AM

Michael Crowe

Topic Author

Offline

Send a private message to Michael Crowe

Posts: 150

Thank you received: 0

Reply to Rome K/G:

These are from a 1955 Brochure,

Rome, thanks for the reply and information. My D8 is a late 13A, and the decals in the pictures you sent look like what is on it now. The problem is, the decals that came from ACMOC are the earlier style. I am not sure which are correct. I provided the year and serial number when ordering the decals so I am assuming they went what is correct, and that at some point in time, the previous owner put on wrong decals. The only thing is, it looks like its never been repainted, and everything has faded uniformly.

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 1:48 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Reply to Michael Crowe:

Rome, thanks for the reply and information. My D8 is a late 13A, and the decals in the pictures you sent look like what is on it now. The problem is, the decals that came from ACMOC are the earlier style. I am not sure which are correct. I provided the year and serial number when ordering the decals so I am assuming they went what is correct, and that at some point in time, the previous owner put on wrong decals. The only thing is, it looks like its never been repainted, and everything has faded uniformly.

What is the serial number?

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 2:12 AM

Michael Crowe

Topic Author

Offline

Send a private message to Michael Crowe

Posts: 150

Thank you received: 0

Reply to Rome K/G:

What is the serial number?

D8 13A 3543

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 2:13 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Ok, those pics were for a the 14A that came out in "55". Yours should have the older style then I believe.

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 2:25 AM

Michael Crowe

Topic Author

Offline

Send a private message to Michael Crowe

Posts: 150

Thank you received: 0

Reply to Michael Crowe:

D8 13A 3543

Ok great, so I have the correct decals. So can anyone upload pics of how they are supposed to be on the tractor. Mainly I am wondering how they go on the sides of the seat and the seatback. I've found pictures of the hood.

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 2:28 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,788

Thank you received: 50

Reply to Michael Crowe:

Ok great, so I have the correct decals. So can anyone upload pics of how they are supposed to be on the tractor. Mainly I am wondering how they go on the sides of the seat and the seatback. I've found pictures of the hood.

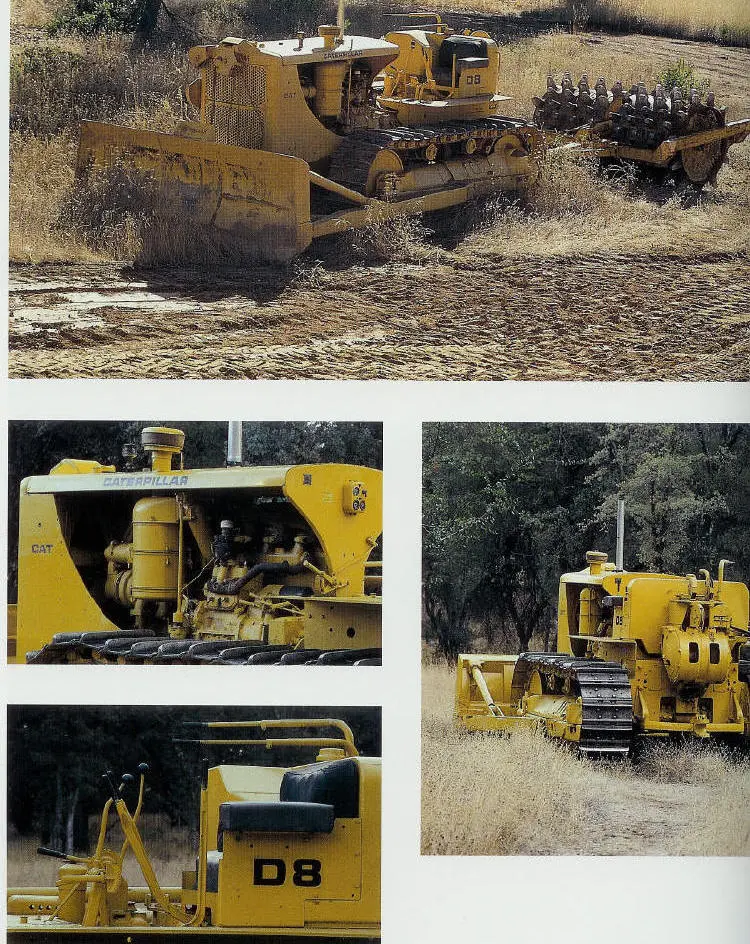

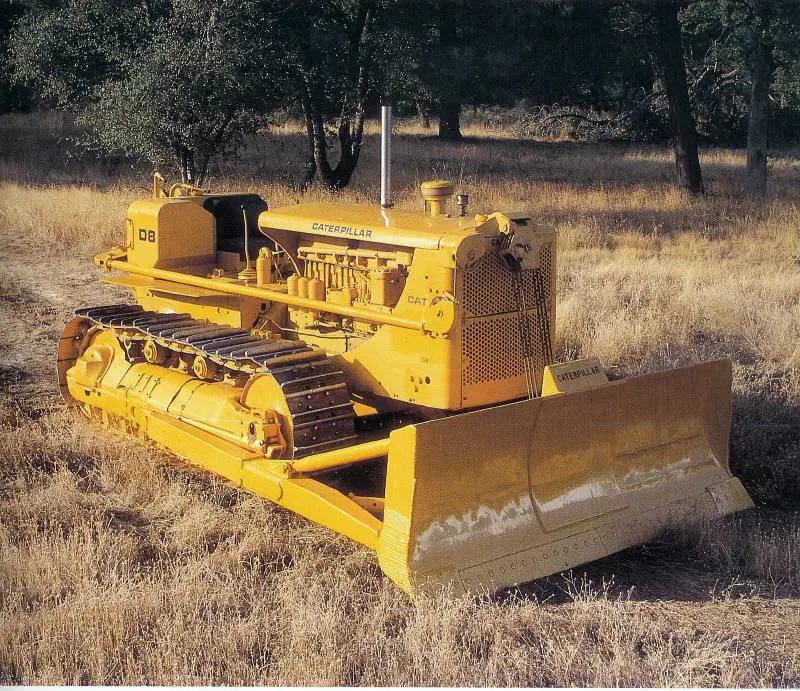

Couple of pictures of what I believe is correct decals on a 13A

[attachment=68444]D8-13A #1.jpg[/attachment]

[attachment=68445]D8-13A #2.jpg[/attachment]

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 3:21 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

Reply to Old Magnet:

Couple of pictures of what I believe is correct decals on a 13A

[attachment=68444]D8-13A #1.jpg[/attachment]

[attachment=68445]D8-13A #2.jpg[/attachment]

Nope, that Cat name style started in the year 1967. Michaels would be more of the late 2U series D8 decals, if they are the "caterpillar diesel" ones.

Please log in or create an account to join the conversation.

Mon, Jul 25, 2022 3:41 AM

Rome K/G

Offline

Send a private message to Rome K/G

Posts: 6,092

Thank you received: 0

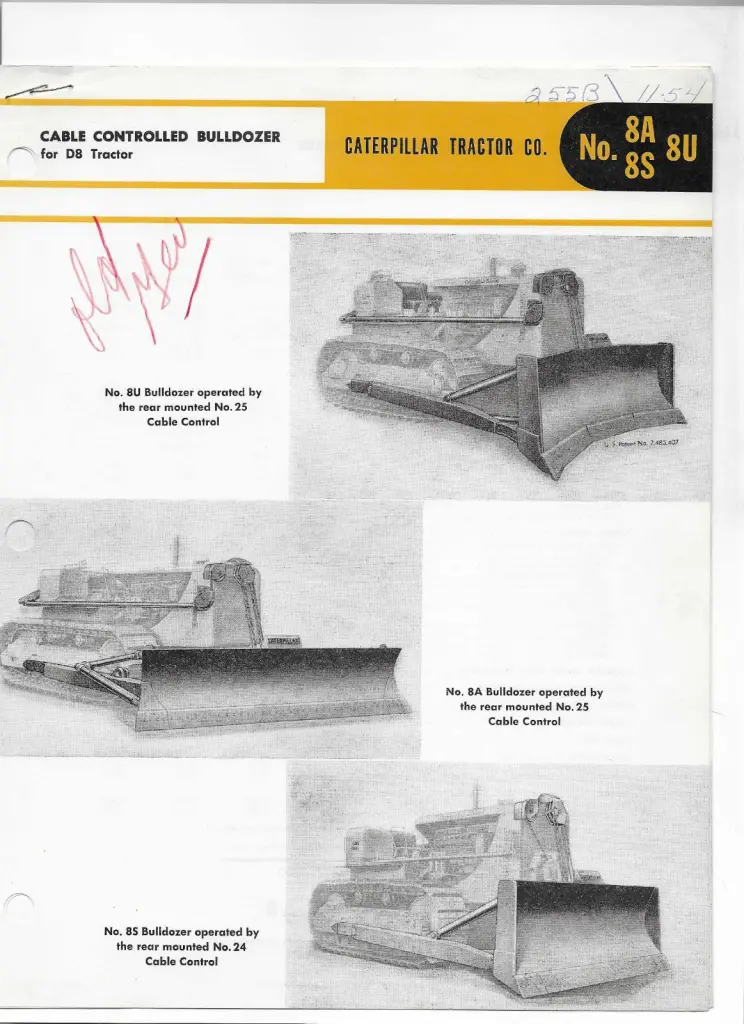

This is a Blade brochure from 11-1954, it shows the early "Caterpillar Diesel" lettering. It's the closest I could find to 1955.
[attachment=68446]Cat D8 blades 001.jpg[/attachment]
