1950 D6 pony clutch removal.

Showing 1 to 10 of 10 results

lalogomez36

Topic Author

Offline

Send a private message to lalogomez36

Posts: 16

Thank you received: 0

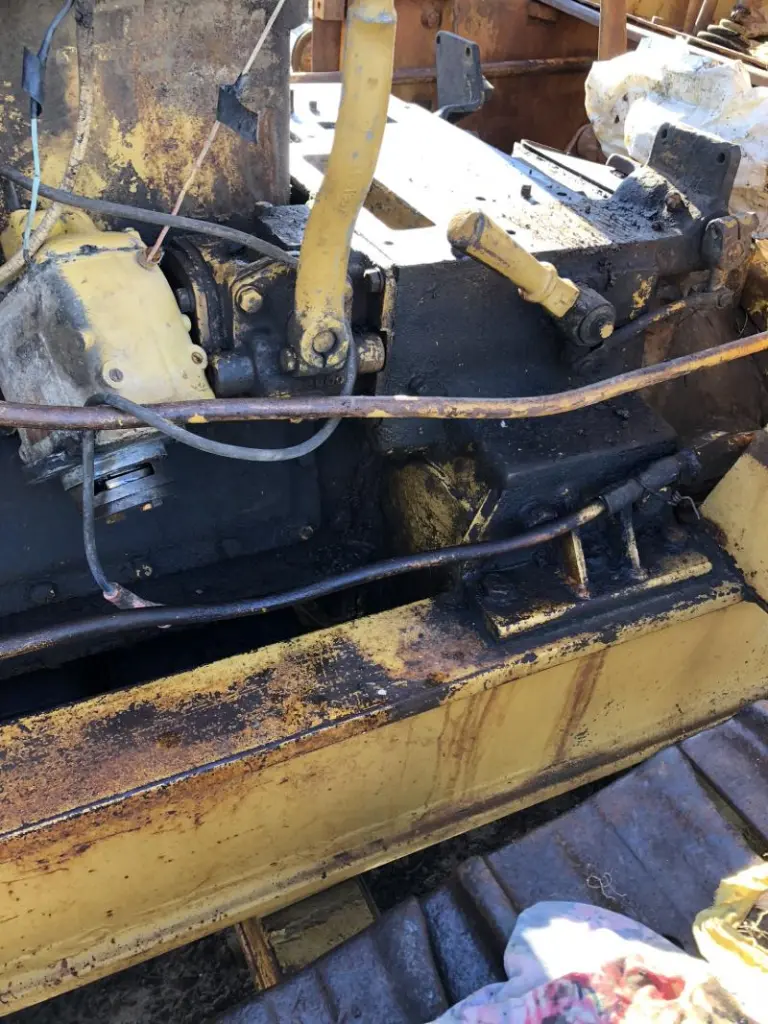

I removed the four bolts but i can only get it to move back about a half inch. Do i need to remove more bolts elsewhere or do i need an extractor? Thank you all god bless. [attachment=51945]7A1906D7-C4D2-4FF4-A330-1C91779B1016.jpg[/attachment]

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 3:04 AM

gemdozer

Offline

Member

Send a private message to gemdozer

Posts: 1,486

Thank you received: 12

You have only 4 bolts and try turning the cluch housing right and left side and you can use ATF or WD40 ON SEAL THIS COULD HELP TO PULLING THE CLUCH HOUSING ASS,

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 4:52 AM

ccjersey

Offline

Send a private message to ccjersey

Posts: 4,422

Thank you received: 0

Is the pony off or raised to allow the pinion latching sleeve to come past the drive gear?

Usually the big problem is getting the o-ring to come unstuck. The lubrication is important and be cautious prying on the ears, they can be snapped off pretty easily

D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 5:55 AM

edb

Offline

Member

Send a private message to edb

Posts: 4,027

Thank you received: 0

Reply to ccjersey:

Is the pony off or raised to allow the pinion latching sleeve to come past the drive gear?

Usually the big problem is getting the o-ring to come unstuck. The lubrication is important and be cautious prying on the ears, they can be snapped off pretty easily

Hi Team,
from memory you may have to remove 1 or 2 of the top engine block, side plate/cover bolts to allow further travel of the pinion housing. Also you need to engage the pinion to shorten its overall length to aid in getting it out past the fuel injection pump governor cover. By your picture you have the pony off already so this is not holding it back.

As said lubrication, twisting, and gentle levering in between the easily broken ears of the housing. Sometimes moving the unit in and out a few times aids in dispersing the lube on the required surfaces of the seal and the bore.
Hope this helps.
Cheers,
Eddie B.

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 7:38 AM

lalogomez36

Topic Author

Offline

Send a private message to lalogomez36

Posts: 16

Thank you received: 0

Reply to edb:

Hi Team,
from memory you may have to remove 1 or 2 of the top engine block, side plate/cover bolts to allow further travel of the pinion housing. Also you need to engage the pinion to shorten its overall length to aid in getting it out past the fuel injection pump governor cover. By your picture you have the pony off already so this is not holding it back.

As said lubrication, twisting, and gentle levering in between the easily broken ears of the housing. Sometimes moving the unit in and out a few times aids in dispersing the lube on the required surfaces of the seal and the bore.
Hope this helps.
Cheers,
Eddie B.

The only reason im trying to take it off is to see if once its removed it will allow me to see the flywheel to help align the starter im getting ready to put in it. I bought the tractor with pony motor off already. Should I just leave it alone?? Merry Christmas everyone!!

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 8:33 AM

lalogomez36

Topic Author

Offline

Send a private message to lalogomez36

Posts: 16

Thank you received: 0

Reply to lalogomez36:

The only reason im trying to take it off is to see if once its removed it will allow me to see the flywheel to help align the starter im getting ready to put in it. I bought the tractor with pony motor off already. Should I just leave it alone?? Merry Christmas everyone!!

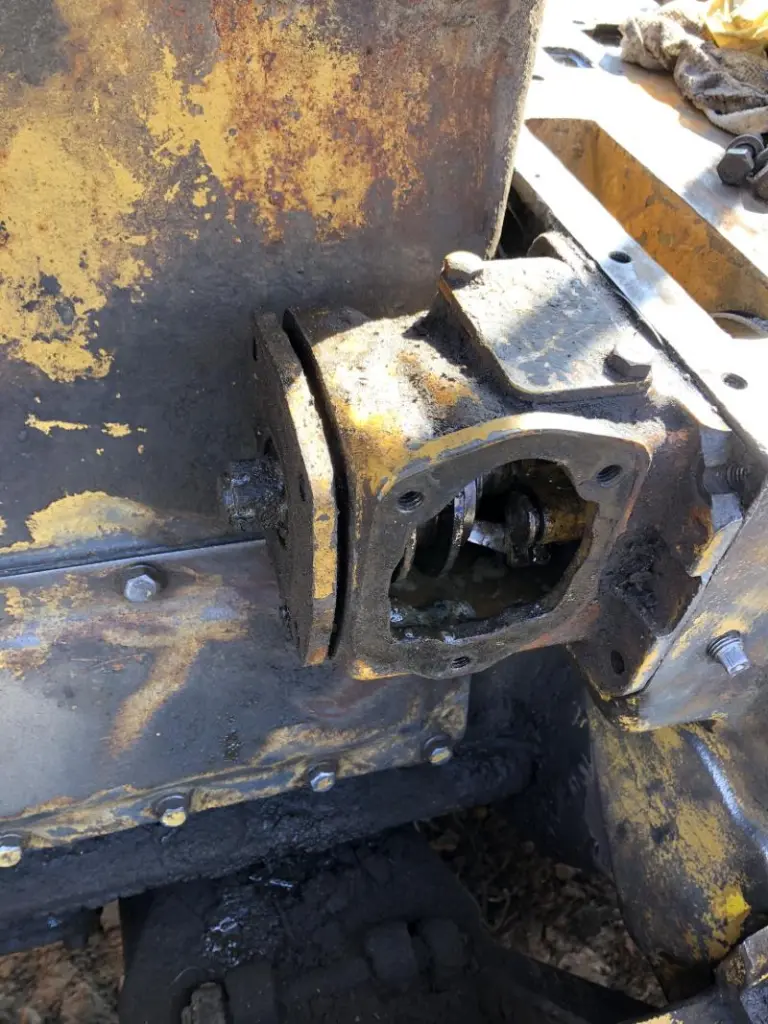

[attachment=51947]8ECFDEFD-17C2-43CF-B4EF-E7D664683E45.jpg[/attachment] i broke an ear off before i realized i needed expert advice.

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 8:36 AM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,696

Thank you received: 18

Reply to lalogomez36:

[attachment=51947]8ECFDEFD-17C2-43CF-B4EF-E7D664683E45.jpg[/attachment] i broke an ear off before i realized i needed expert advice.

What starter arrangement are you looking to install?

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 9:32 AM

lalogomez36

Topic Author

Offline

Send a private message to lalogomez36

Posts: 16

Thank you received: 0

Reply to Old Magnet:

What starter arrangement are you looking to install?

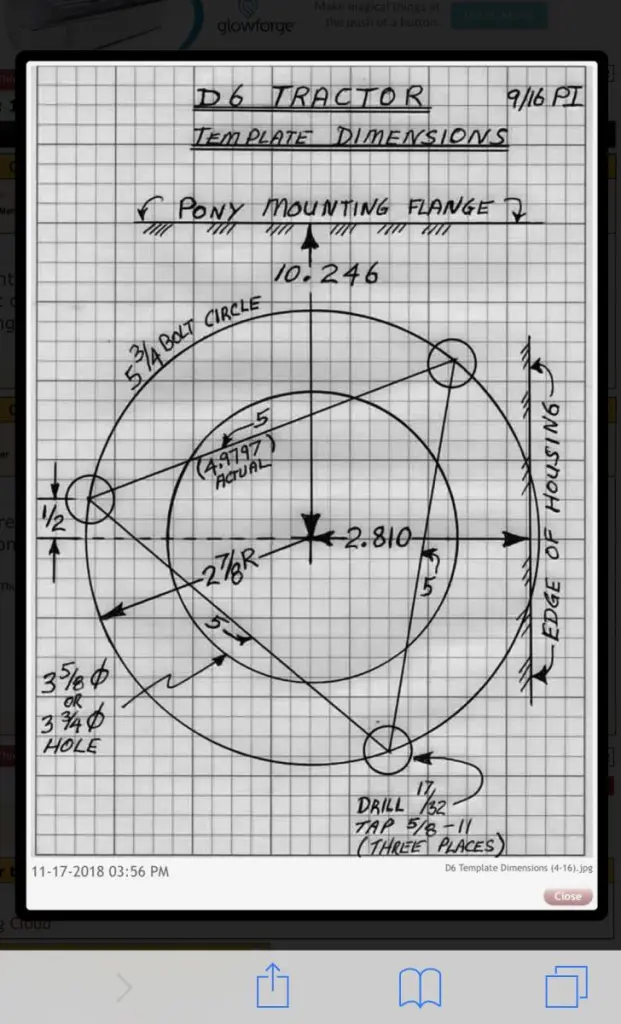

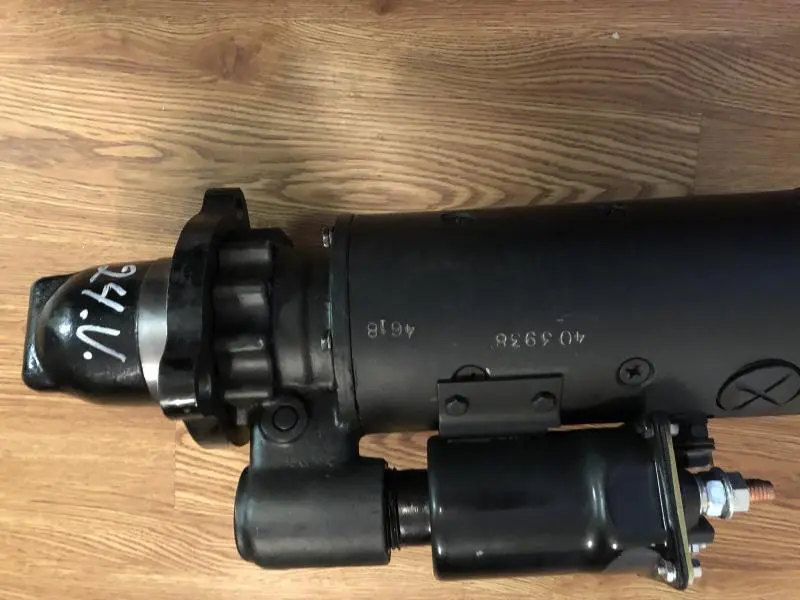

[attachment=51949]D116DCFD-5D18-4B78-AD63-A52769CF12AF.jpg[/attachment] trying to install this starter, with the help of the template you shared with me Old Magnet sir.

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 10:26 AM

oldbeek

Offline

Member

Send a private message to oldbeek

Posts: 781

Thank you received: 0

Reply to lalogomez36:

[attachment=51949]D116DCFD-5D18-4B78-AD63-A52769CF12AF.jpg[/attachment] trying to install this starter, with the help of the template you shared with me Old Magnet sir.

Ear can be brazed back on. Should be able to get some pry bar leverage though the pony gear hole on top. Get it rotating back and forth first, before trying to pull it out. Maybe a longer bar bolted to it using the side cover bolt holes to rotate it.

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 12:34 PM

Old Magnet

Offline

Send a private message to Old Magnet

Posts: 16,696

Thank you received: 18

Reply to lalogomez36:

[attachment=51949]D116DCFD-5D18-4B78-AD63-A52769CF12AF.jpg[/attachment] trying to install this starter, with the help of the template you shared with me Old Magnet sir.

Ok, I was wondering if you were trying to install the starter version that mounts to the pony clutch flange and still uses the problematic latch mechanism drive. The pony clutch/drive has no function in the conversion that three bolt mounts to the flywheel housing unless you intend to have both pony and direct electric start. There also is no advantage to having the pony clutch removed as far as locating or engaging the conversion starter.
I can't tell from your picture whether or not you have the correct drive end housing and gear on that starter.

Please log in or create an account to join the conversation.

Wed, Dec 26, 2018 1:03 PM

TOGNOT

Offline

Send a private message to TOGNOT

Posts: 725

Thank you received: 0

Reply to Old Magnet:

Ok, I was wondering if you were trying to install the starter version that mounts to the pony clutch flange and still uses the problematic latch mechanism drive. The pony clutch/drive has no function in the conversion that three bolt mounts to the flywheel housing unless you intend to have both pony and direct electric start. There also is no advantage to having the pony clutch removed as far as locating or engaging the conversion starter.
I can't tell from your picture whether or not you have the correct drive end housing and gear on that starter.

In my humble opinion..... get a come a long and attach it to the tracks or about any where on the fron of the tractor. pull the hook and cable back towards the piece you want to pull out. using two bolts, attach a small piece of chain to the piece you want to pull out. hook the come a long to the chain .. pull it straight forward.

I have NEVER been able to wiggle, pry , cuss or otherwise get the pinion out of the block - except this way.

Please log in or create an account to join the conversation.

Thu, Dec 27, 2018 4:55 AM
