1938 Caterpillar R4

1938 Caterpillar R4

Showing 1 to 3 of 3 results
DTrainer08
Topic Author
Offline
Send a private message to DTrainer08
Posts: 23
Thank you received: 0

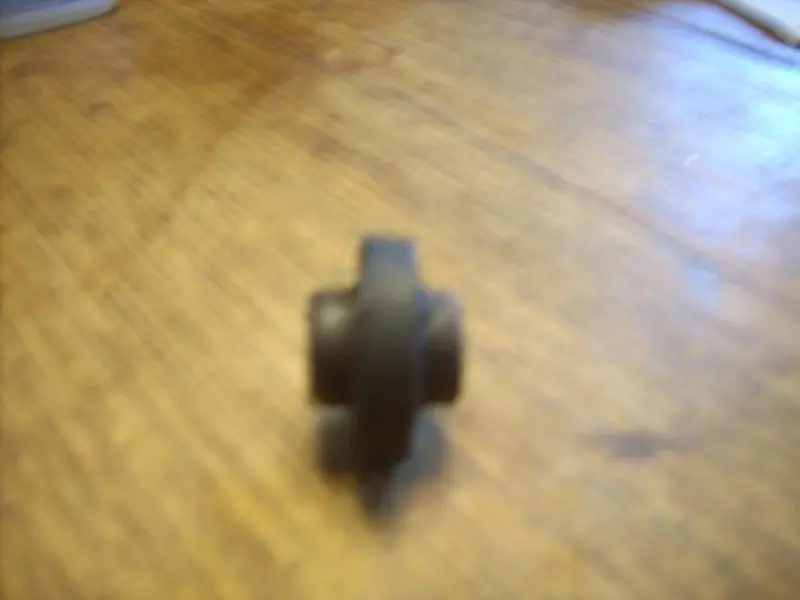

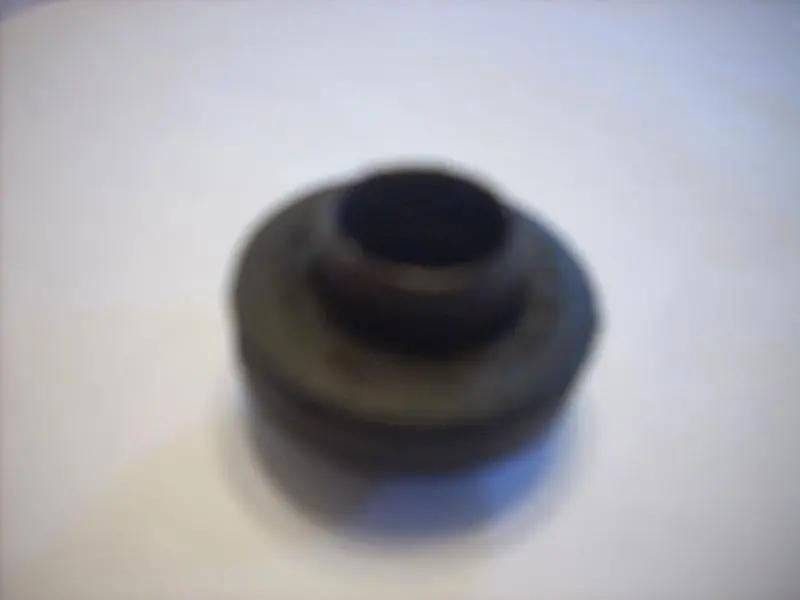

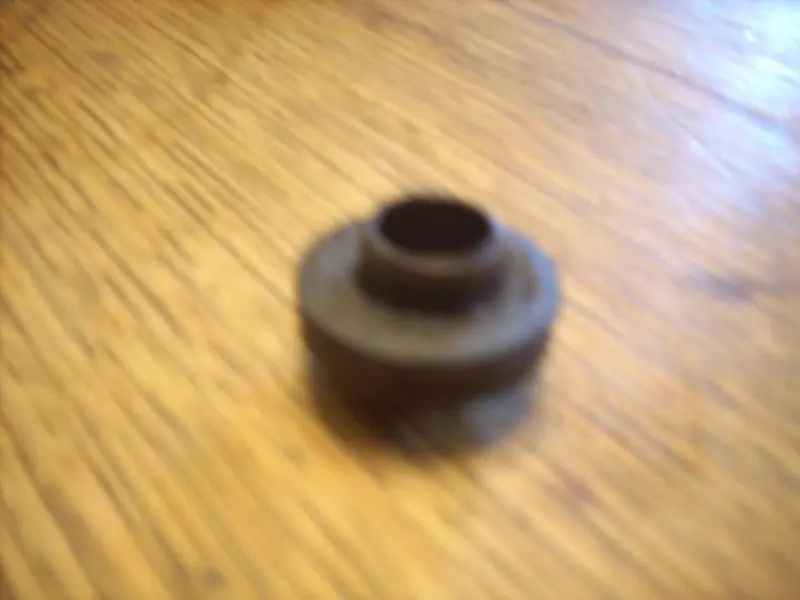

Im in need of this part not sure what its is called but here is a few pics of it, its the only thing holding me back on the motor rebuild, it goes between the block and the head, [attachment=18650]DSCN2658.jpg[/attachment][attachment=18651]DSCN2659.jpg[/attachment][attachment=18652]DSCN2660.jpg[/attachment] thanks for all the help in advance
Attachment
Attachment
Attachment
Please log in or create an account to join the conversation.
Wed, Jul 24, 2013 7:25 AM
ccjersey
Offline
Send a private message to ccjersey
Posts: 4,422
Thank you received: 0
a brass ferrule with a rubber grommet. Usually are a couple different sizes under the head, larger ones for coolant and a few small ones for oil to come up to rockers.
D2-5J's, D6-9U's, D318 and D333 power units, 12E-99E grader, 922B & 944A wheel loaders, D330C generator set, DW20 water tanker and a bunch of Jersey cows to take care of in my spare time😄
Please log in or create an account to join the conversation.
Wed, Jul 24, 2013 7:42 AM
DTrainer08
Topic Author
Offline
Send a private message to DTrainer08
Posts: 23
Thank you received: 0
Reply to ccjersey:
a brass ferrule with a rubber grommet. Usually are a couple different sizes under the head, larger ones for coolant and a few small ones for oil to come up to rockers.
where can i buy them at ? can i get them threw cat,
Please log in or create an account to join the conversation.
Wed, Jul 24, 2013 7:46 AM
josh
Offline
Send a private message to josh
Posts: 1,210
Thank you received: 6
Reply to DTrainer08:
where can i buy them at ? can i get them threw cat,
Calls for 6 each of 6B6224 and 6B6225, and 4 each of 7B2419 and 7B2420, available from cat and aftermarket, a common item, Cat even had them listed in lots of 100, they are easy to crush if you are not careful.
Please log in or create an account to join the conversation.
Wed, Jul 24, 2013 10:05 AM
