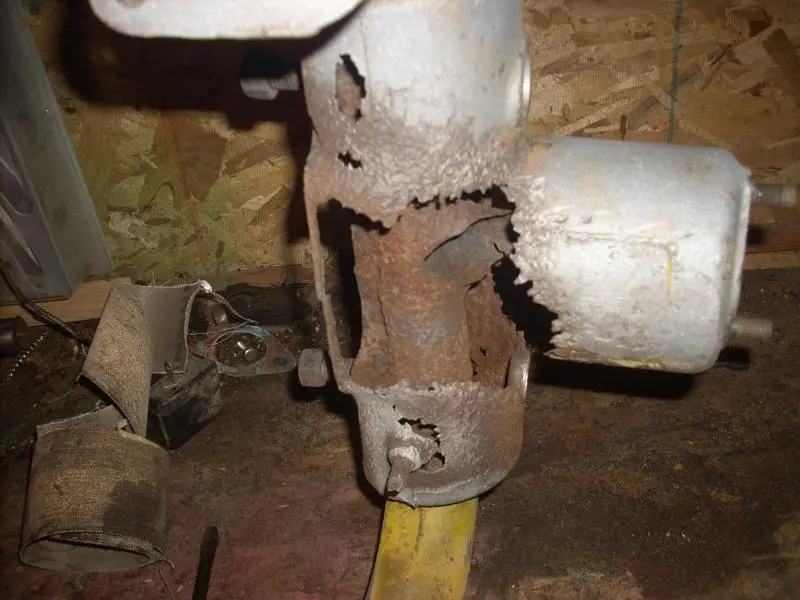

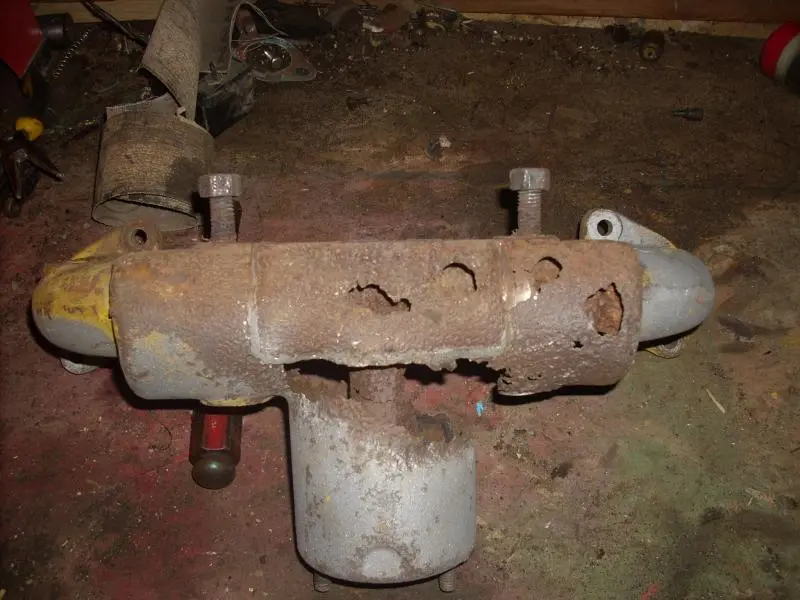

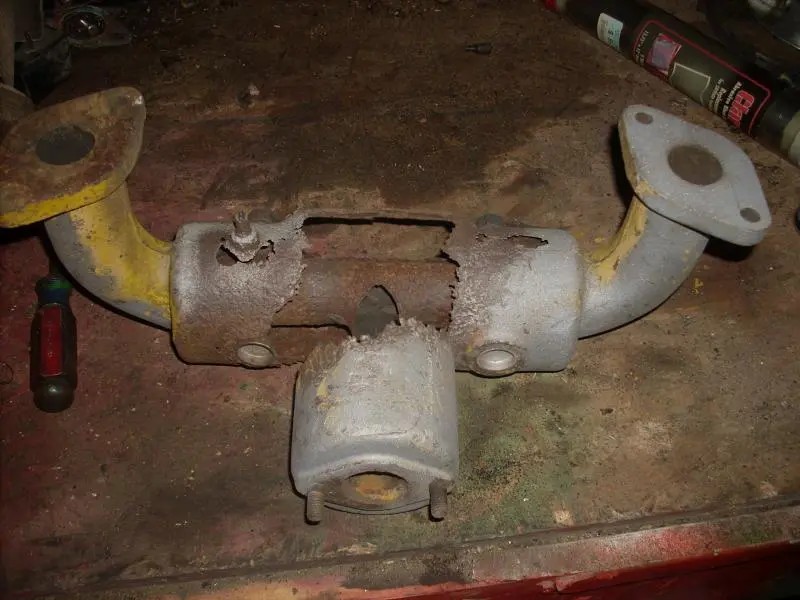

1938 caterpillar r4

I don't know if CATMAN makes a manifold for that?
He is over on the RIF forum.

I know there is a R4 in Davison mi for parts, engine rebuilt, i believe it had a good manifold, or you could make a intake if your not concerned about it being authentic, I built one for my gas 40

contact me if you want to get in touch with the owner of the R4, last time I saw it was 3 years ago, the engine was sitting the floor in front of machine, it was rebuilt by a machinest so it was likely well done

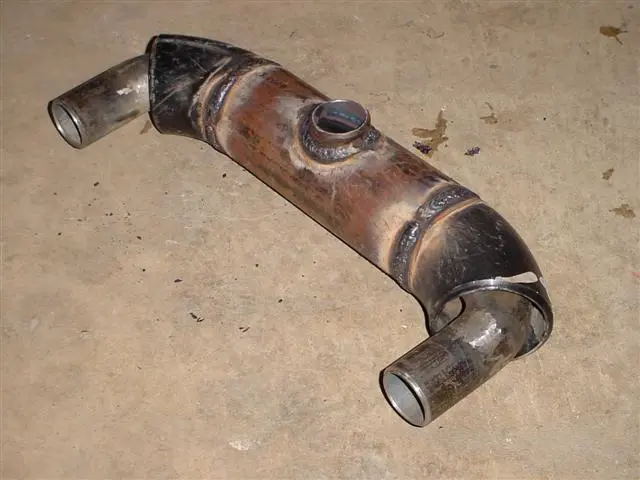

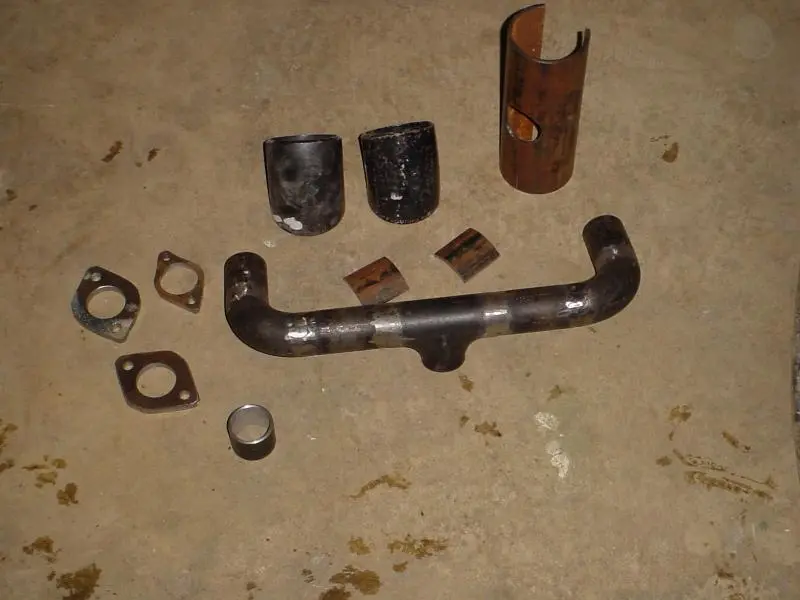

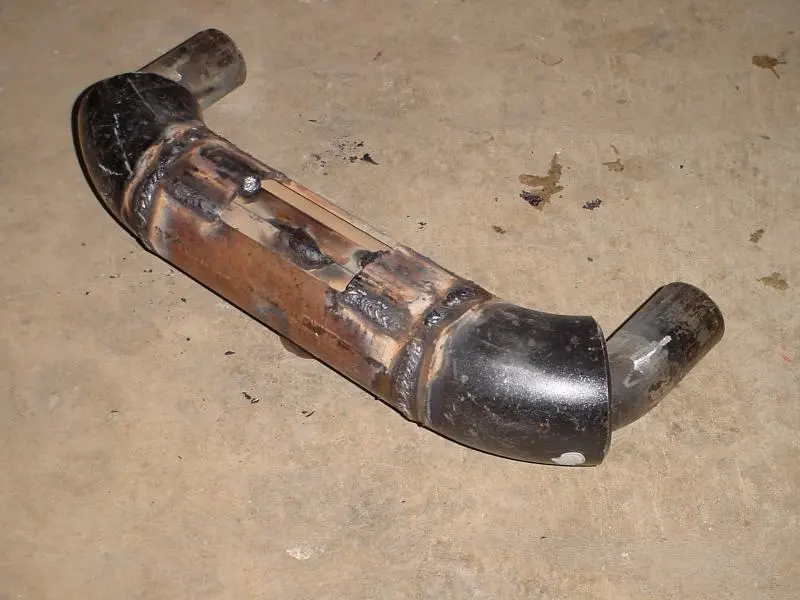

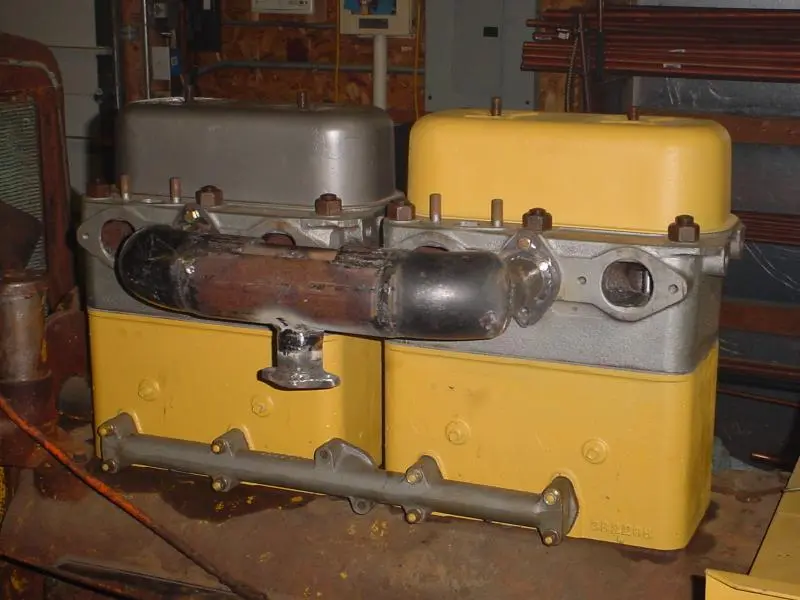

The pic you requested, the intake in 1 1/2 inch pipe and the outer shell for the heat exchanger is 3 inch, the fittings are weld bend brand


[attachment=15817]40 restoration 001.jpg[/attachment][attachment=15818]40 restoration 002.jpg[/attachment][attachment=15819]40 restoration 003 (Small).jpg[/attachment][attachment=15820]40 restoration 004.jpg[/attachment]

Nice work there, Steve A !

I agree with Stephen, that is very neat work, well done Steve.
regards
Mike

thanks for the all the help, nice work on that,, i have found a org one in ca,

Steve,
Very Nice!!
I am getting ready to do the same for my forty, did you use steam pipe 45's for the ends?
