17a cable blade clutch adjustment

Showing 1 to 2 of 2 results

scott lewin

Topic Author

Offline

Send a private message to scott lewin

Posts: 4

Thank you received: 0

Just rebuilt the clutches and brake band on the front PCU and blade won't hold up! Does anyone have the correct adjustment procedure for the brake?

Please log in or create an account to join the conversation.

Mon, Oct 31, 2022 10:19 PM

seiscat

Offline

Send a private message to seiscat

Posts: 1,319

Thank you received: 0

Sorry to be so late with my reply.
[attachment=69374]20221103_131853.jpg[/attachment]
[attachment=69375]20221103_132044.jpg[/attachment]

Please log in or create an account to join the conversation.

Fri, Nov 4, 2022 1:31 AM

Deas Plant.

Offline

Member

Admin

Send a private message to Deas Plant.

Location: Currently - DowNunda.

Posts: 6,875

Thank you received: 65

Reply to seiscat:

Sorry to be so late with my reply.

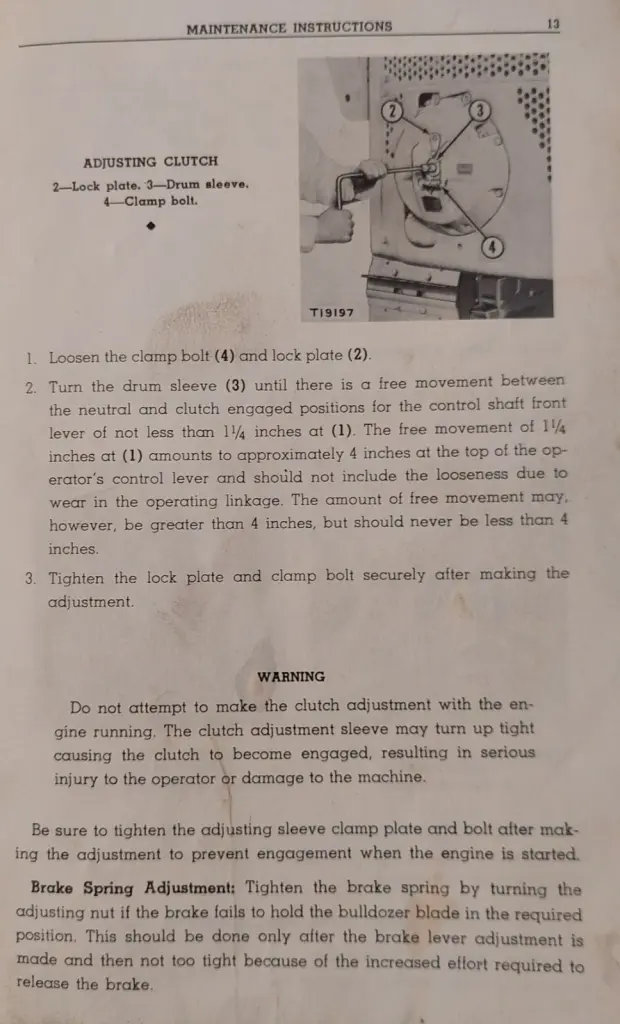

[attachment=69374]20221103_131853.jpg[/attachment]

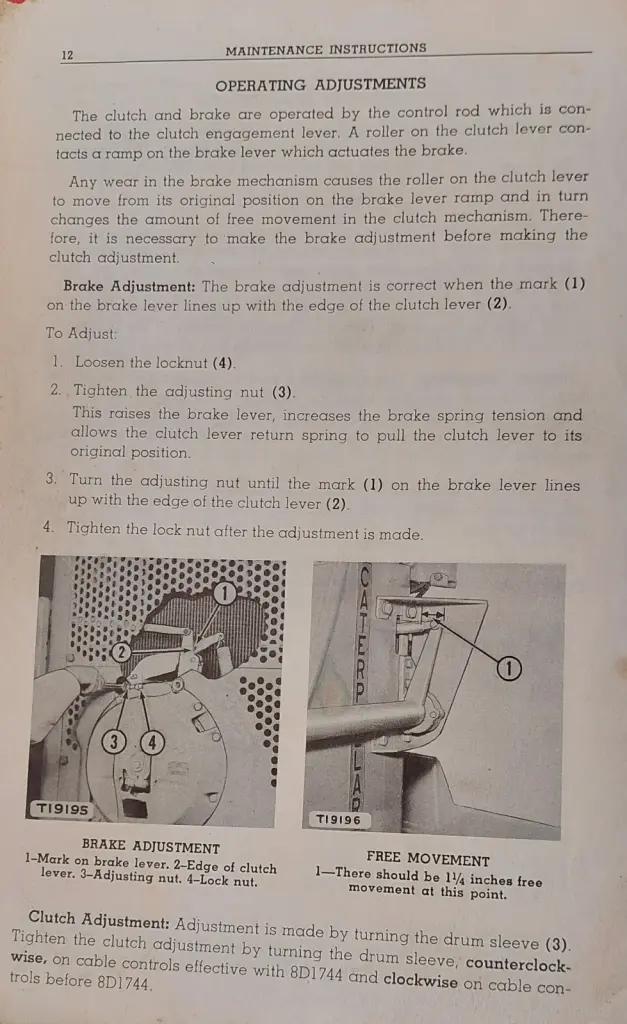

[attachment=69375]20221103_132044.jpg[/attachment]

Hi, scott lewin.
Sounds like your problem is that the brake is not holding. There izza procedure for adjusting these CCUs which holds true whether they are front or rear mounted:

1. Adjust the brake SPRING tension until the brake holds the weight of the blade SECURELY - NO creep. This is done by tightening the spring using the colletted nut at the front end of the spring.

2. Adjust the brake actuating rod so that the brake actuating roller lines up with the mark in the actuating lever.

3. Adjust the clutch so that there is about 5 inches of free travel on the end of the control lever before the clutch engages.

Hope this helps.

Just my 0.02.

You have a wonderful day. Best wishes. Deas Plant.
