Yes it can be adjusted. It is an oil type clutch. I don't have specifics on the 112E model but most are adjusted the same. This is how it is done on the #12 99E. I'm pretty certain yours is the same procedure.
An 1/8 drill bit works very well for measuring the gap when setting them. Go around the circle twice.
First, thanks for your responses.
Turns out cotter pins on 2 of the adjusters had sheared off. Adjusters has backed out.

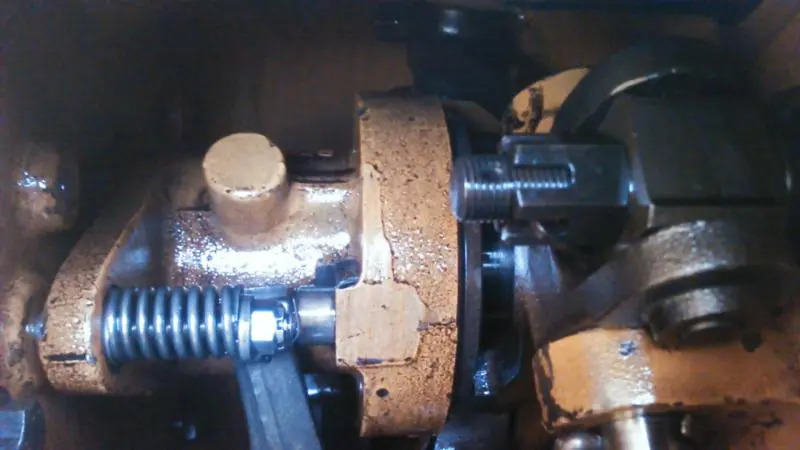

I did find this link which is from an Army Technical Manual that other may fine useful. Looks to be a service manual. Also, attached photo...
http://www.archive.org/stream/armytechnicalman003512mbp/armytechnicalman003512mbp_djvu.txt
FLYWHEEL CLUTCH ADJUSTMENT
1-Release bearing thrust ring.
2-Adjusting nut.
T2II67
Remove the inspection cover on the left side of the clutch compartment
and adjust the clutch as follows:
1. Remove the cotter pins from adjusting nuts and screws.
2. Turn each adjusting nut (2) clockwise until the release lever touches
the release bearing thrust ring (1).
3. Turn the adjusting nut two thirds of a turn counterclockwise. This
will give the necessary Vs inch clearance between the release lever
and release bearing thrust ring.
I have 1961 cat 112E is the clutch adjustment same as this my pedal goes to the floor and won't go into gear just grinds can it be adjusted?
adjustment seems ok what do need to check next?
1961 cat grader 112e 225e is leaking from power steering vent
caterpillar 112e clutch problems when running shifts in either range or high low but not both at same time but will shift without running??
