D4D wiring
D4D wiring
Less
More
-
Posts: 23
-
Thank you received: 1
-
3 years 7 months ago #227157
by Cat-bruce
Hi Folks,
Any pictures of wiring for the 82J series. I have 24 volt type. I would be grateful for pictures of wire connections. I know I need to connect the starter switch and amp gauge in the dash along with glo plugs and starter and alternator. Yes it's a mess.
Thanks in advance to anyone who cares to help.
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 16722
-
Thank you received: 815
-
3 years 7 months ago - 3 years 7 months ago #227159
by Old Magnet
Should be a wiring diagram in the parts manual or the operation and maintenance manual.
This diagramis pretty typical....
Should be a wiring diagram in the parts manual or the operation and maintenance manual.
This diagram is pretty typical....
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 23
-
Thank you received: 1
-
3 years 7 months ago #227177
by Cat-bruce
Thanks for the reply. I don’t have lights so this is a little confusing especially since all the wires are gone
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 6894
-
Thank you received: 657
-
3 years 7 months ago #227186
by neil
If you just have starting and generating, then just wire according to those functions using the diagram. Circuits are essentially the same function. Matter of fact, if you just omit all the circuitry from the ammeter to the light switch and beyond, then you have what your tractor needs most likely
Cheers,
Neil
Pittsford, NY
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 23
-
Thank you received: 1
-
3 years 6 months ago #228025
by Cat-bruce
Thanks for the reply’s. So I have an alternator instead of a generator. How do I wire from the amp meter to both poles? Second if I use the light switch at 24 volts do I need special lights or do I need to step the 24 volts down to 12 volts?
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 16722
-
Thank you received: 815
-
Less
More
-
Posts: 23
-
Thank you received: 1
-
3 years 6 months ago #228042
by Cat-bruce
So the orange wire. Goes to the red and green terminal on the alternator or just the red terminal. Then what connects to the green terminal? They both are the brushes. Thanks
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 2117
-
Thank you received: 786
-
3 years 6 months ago #228115
by trainzkid88
the difference between 12volt lights and 24volt lights is the bulb. the housing and bulb holder is the same for a given light.
most led lights can operate on either 12 or 24volt. check the spec sheet to be sure.
The following user(s) said Thank You:
Cat-bruce Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 23
-
Thank you received: 1
-
3 months 4 days ago #258747
by Cat-bruce
Thanks old magnet for the alternator diagram. It is most helpful. instead of using two orange wires from the alternator to the light switch and into the amateur. I used an orange and a brown so that I know which is which. I’m including two photographs because I want to be sure that I put the ground wire to the proper terminal. Couldn’t of done it without you. Thanks Cat Bruce.
Please Log in or Create an account to join the conversation.
Less
More
-
Posts: 23
-
Thank you received: 1
-
3 months 4 days ago #258748
by Cat-bruce

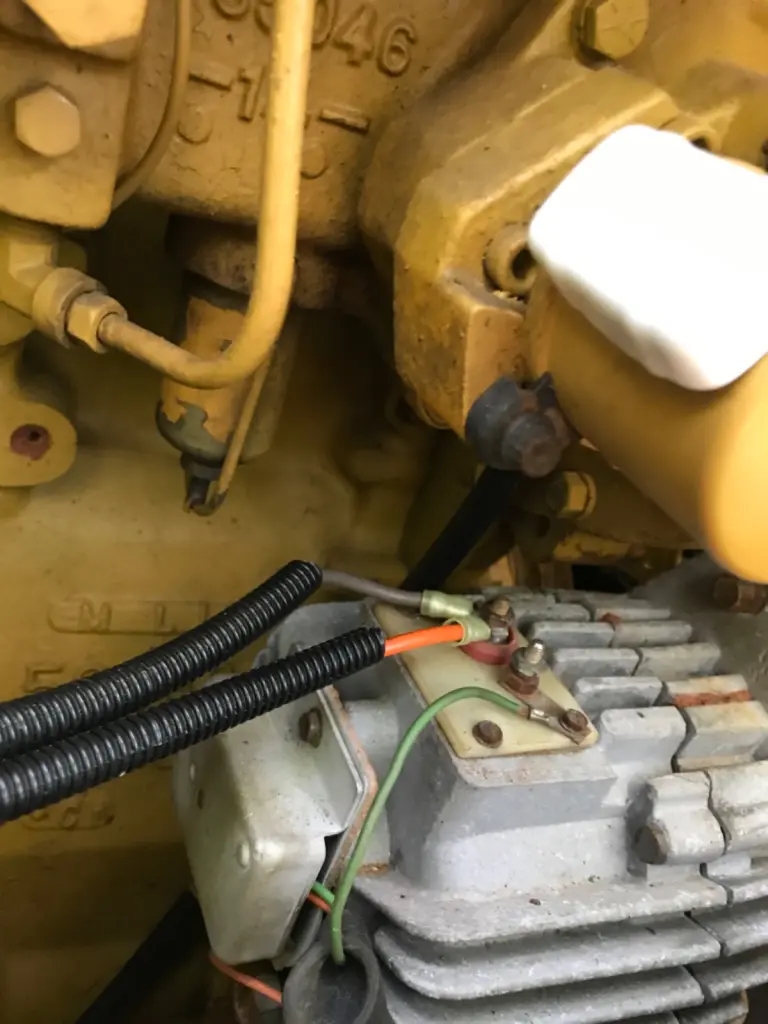

Here are the pictures.The orange and brown wire are on the positive terminal and I’m looking to ground the negative terminal so I think it goes to the ground on the starter if that’s OK
Please Log in or Create an account to join the conversation.
-
